Yale Digital Door Lock YDM7116

Yale Digital Door Lock YDM7116

DDL-YA-P004

Key Features

  • One-touch Fingerprint Verification Method (Easy Scan)
  • Pin Code
  • RFID Card
  • Smart Connectivity : Bluetooth, Z-Wave, Zigbee
  • Mechanical Key Overrride

Product Description




Video

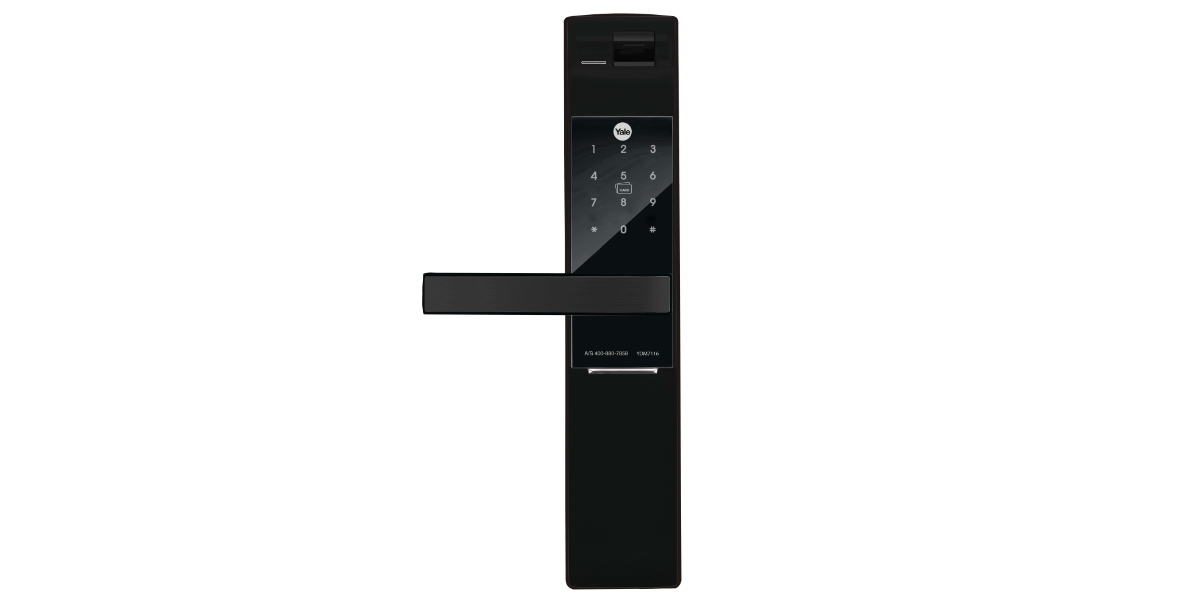

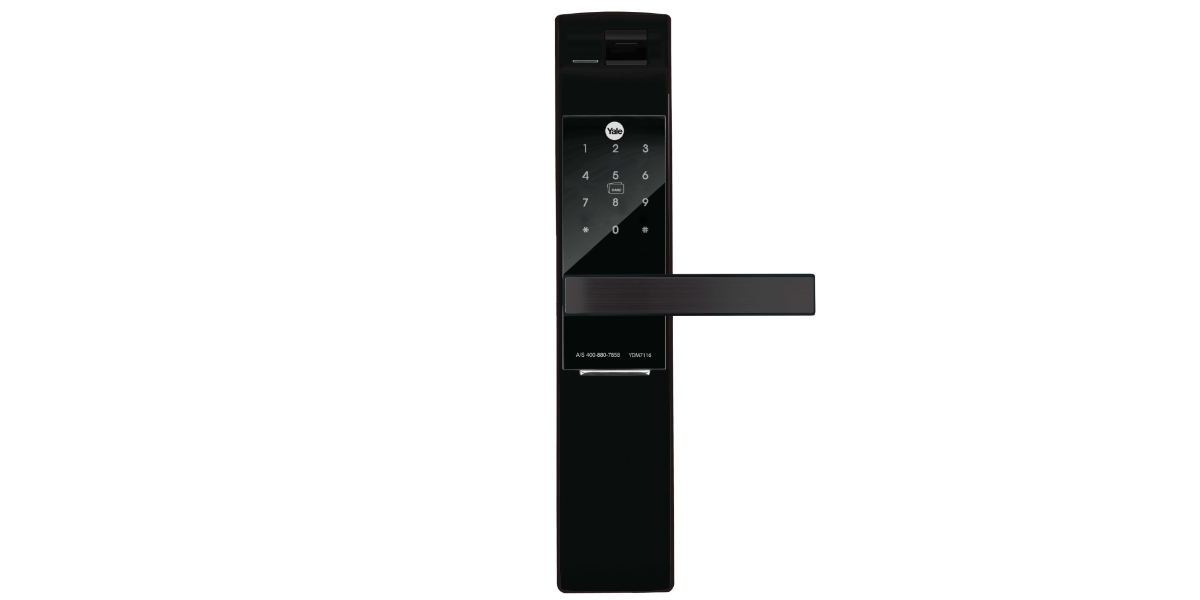

Front & Back


Yale Digital Door Lock YDM7116
Yale Digital Door Lock YDM7116



Features & Benefits


Voice Guide Feature
The voice guided operating manual for easier and more convenient use.

Automatic Locking
Automatic Locking The Yale DDL series automatically locks the door after checking it is properly closed.

Anti-Panic Egress
For convenience and emergency, the door is automatically unlocked whenever the inner lever handle is used. Also, safe handle will protect you from any break-in attempts.

Alarm (Break/ Damage)
80db alarm goes off if anyone attempts to damage the lock or force door open.

Fake PIN code
To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

Low Battery and Emergency Power
Low battery warning with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.

Remote Control (Optional)
Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.



Product Specification


Product Dimension Front 40.18(D) x 68(W) x 340(H) mm
Back 36(D) x 72(W) x 344(H) mm
Access Credential Keypad (PIN Code) Available
RFID Card Available
Fingerprint Available
Mechanical Key Available
Remote Control Optional
Maximum no. of users User Pin code : Up to 30 User
Fingerprint : Up to 20
One time code : Only 1
Compatible (Optional) BLE, Z-Wave, Zigbee
Locking Device Mortise Lock Type Available
Installation Backset 60mm/70mm
Door Thickness 40mm-95mm
Battery Alkaline (AA Size x 4)
