Yale Digital Door Lock YDD424+

DDL-YA-P011

Email Us

Key Features

One-touch Fingerprint Verification Method (Easy Scan)
Pin Code
Smart Connectivity : Bluetooth, Z-Wave, Zigbee
Mechanical Key Overrride

Catalog

Whatsapp Us

Product Description

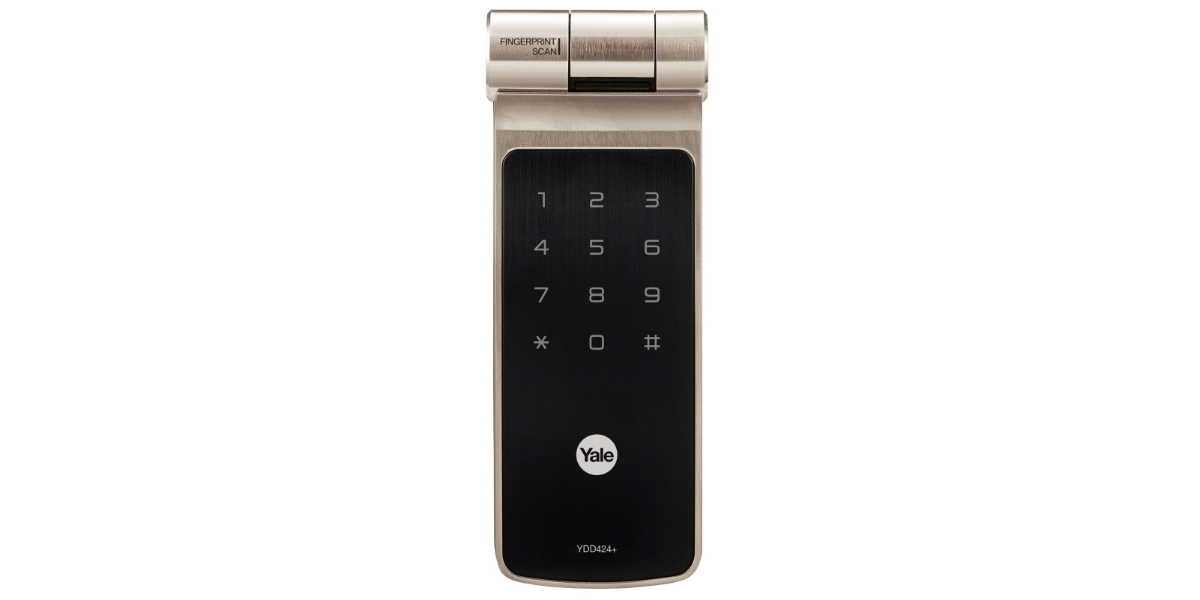

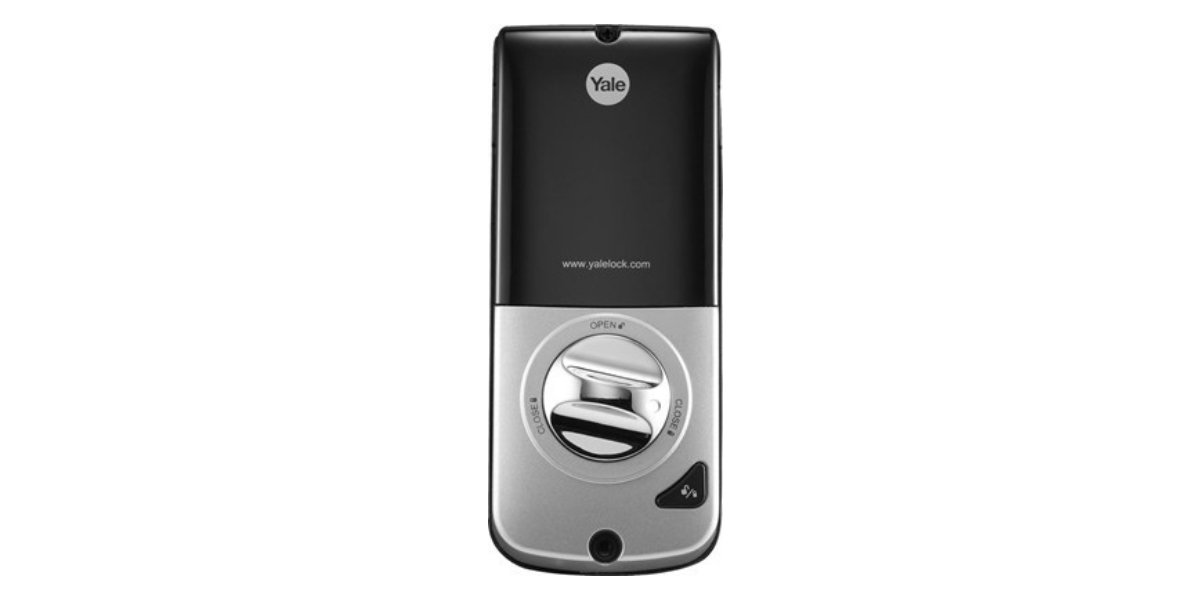

Front & Back

Features & Benefits

Voice Guide Feature
The voice guided operating manual for easier and more convenient use.

Automatic Locking
The Yale DDL series automatically locks the door after checkinng it is properly closed.

Alarm (Break /Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open.

Fake PIN Code
To prevent the PIN code from being exposed, it allows you to enter Fake numbers before or after entering your PIN Code.

Low Battery and Emergency Power
Low Battery warning with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9v battery.

Remove Control (Optional)
Remove control type is also available. Wireless floating ID technology is adopted and works up 50 m.

Product Specification

Product Dimension	Front	31.5(D) x 66(W) x 176(H) mm
Back	35(D) x 70(W) x 170(H) mm
Access Credential	Keypad (PIN Code)	Available
	RFID Card	N/A
	Fingerprint	Available
	Mechanical Key	Available
	Remote Control	Optional
	Maximum No. Of Users	User PIN Code : 30 User Fingerprint : Up to 20
	Compatible (Optional)	BLE, Z-wave, Zigbee
Locking Device	Deadbolt Lock Type	Available
Installation	Backset	60 /70 mm
	Door Thickness	45-57 mm
	Battery	Alkaline (AA Size x 4)
