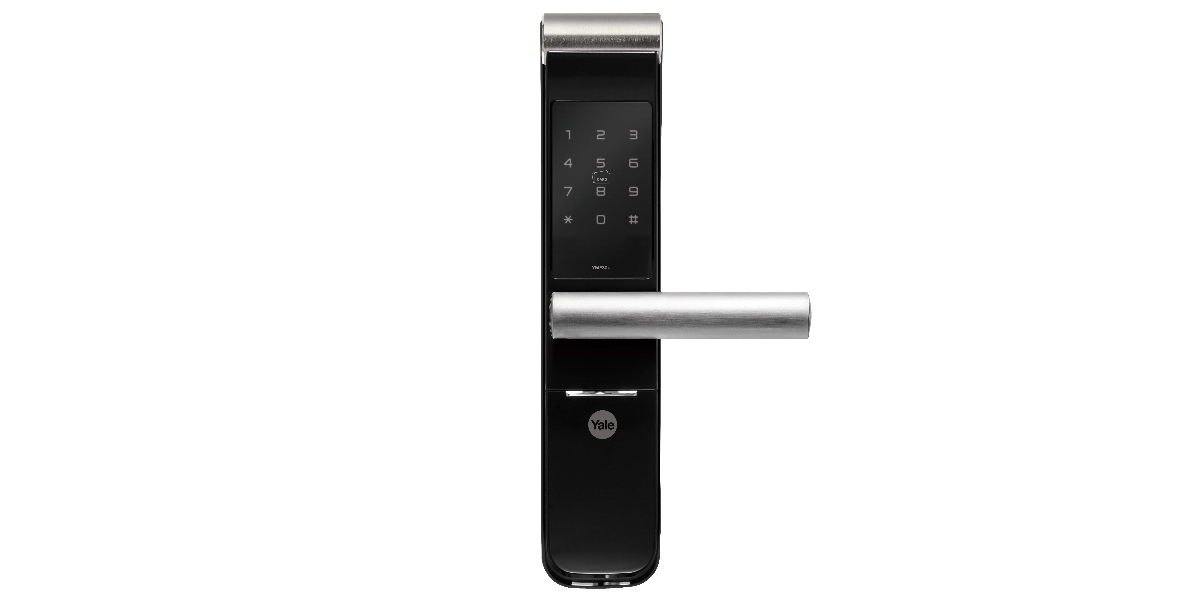

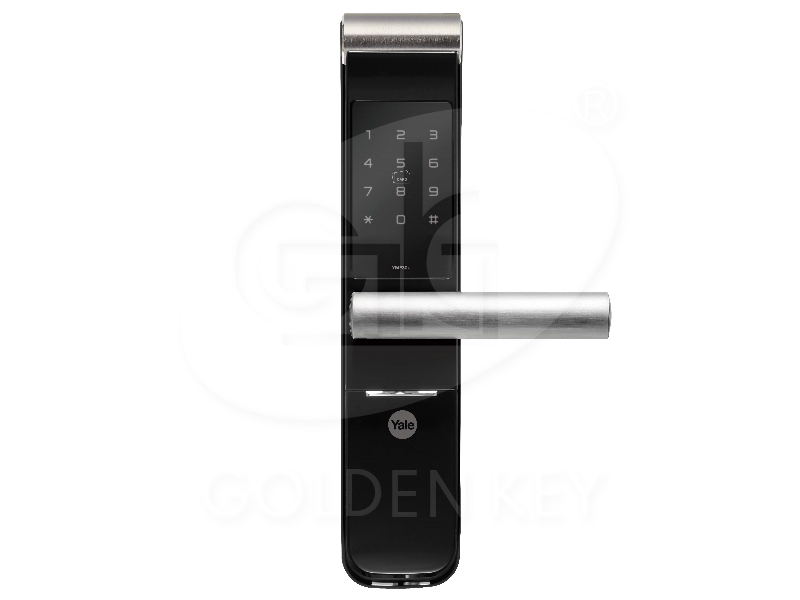

Yale Digital Door Lock YMF30+

Yale Digital Door Lock YMF30+

DDL-YA-P008

Product Description

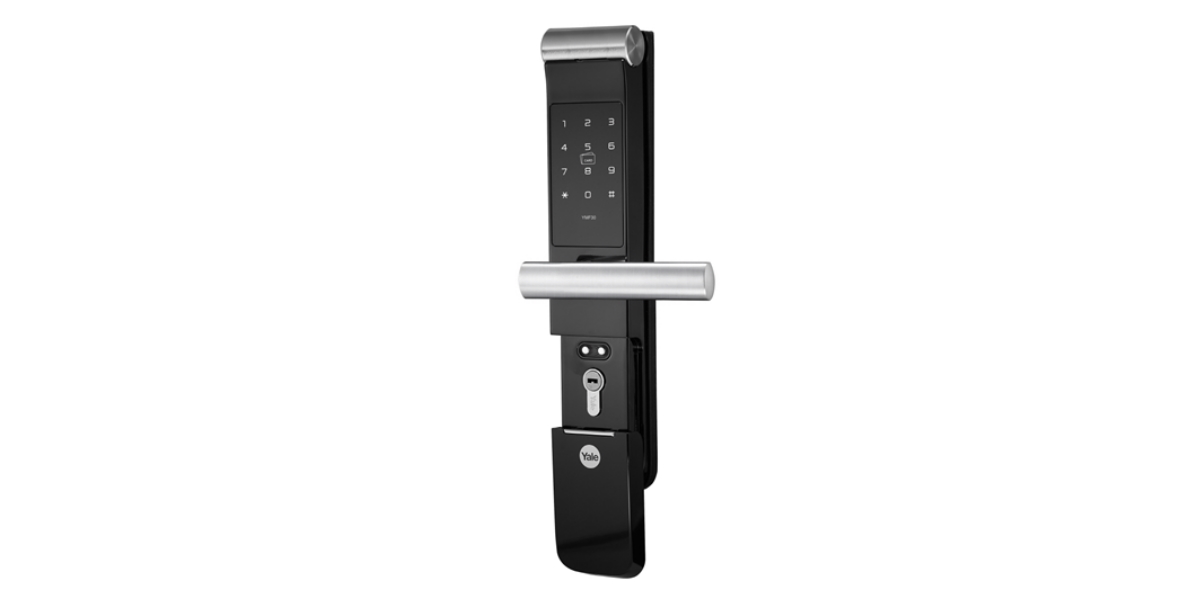

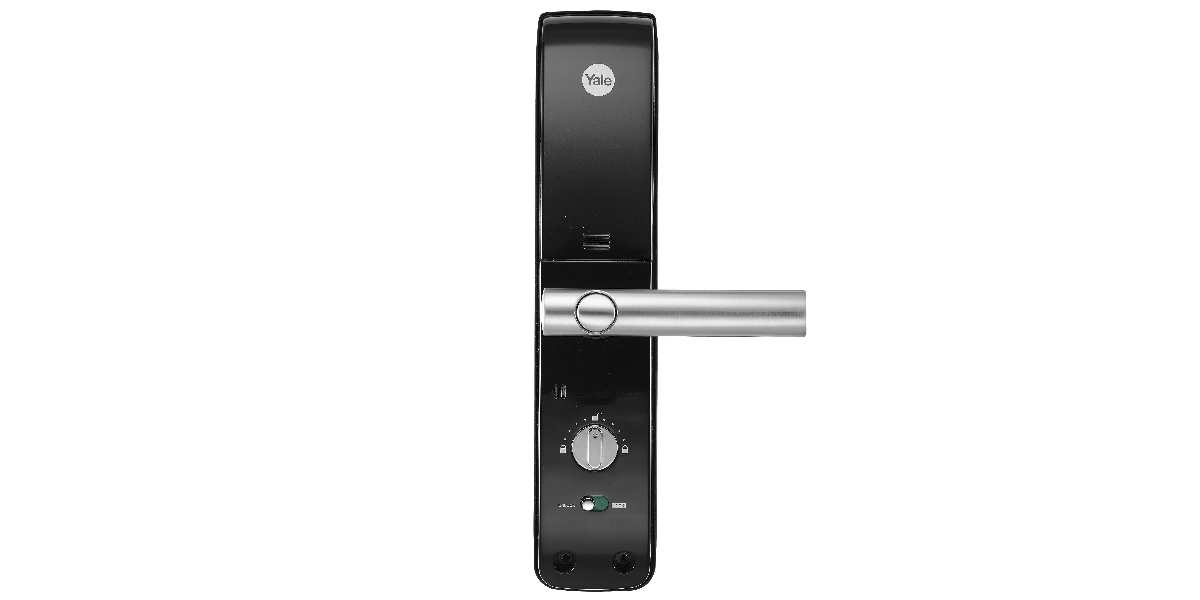

Front & Back


Yale Digital Door Lock YMF30
Yale Digital Door Lock YMF30
Yale Digital Door Lock YMF30



Features & Benefits


Various Access
Yale YMF 30 has various access solutions, Card, Pin code, Key override, Remote Control for your convenience.

Mechanical key override
For emergency, it can also be unlocked with a mechanical key.

Operation status notification
Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

Voice Guide Feature
Whenever any opeartion is made, the keypad informs you what is happened though different alignment of the numbers.

Automatic Locking
The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)

Invisible Keypad
Keypad can be seen only when you touch the screen with your palm.

Alarm (Break-in / Damage/ Fire)
80dB alarm goes off if anyoue attempts to damage the lock or force the door open, or if the lock detects  over 55°c.

Low Battery and Emergency Power
It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

Fake PIN code
To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

Remote Control (Optional)
Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.



Product Specification


Type Mortise lock
RFID Card Up to 40
Mechanical key 2
PIN code 6 - 12 digits
Color Black
Thickness suitable for 40-80mm steel and wooden door.
Backset 60mm
Front body dimension 66 (W) x 320 (H) x 25 (D)  mm
Back body dimension 66 (W) x 320 (H) x 31 (D)  mm
